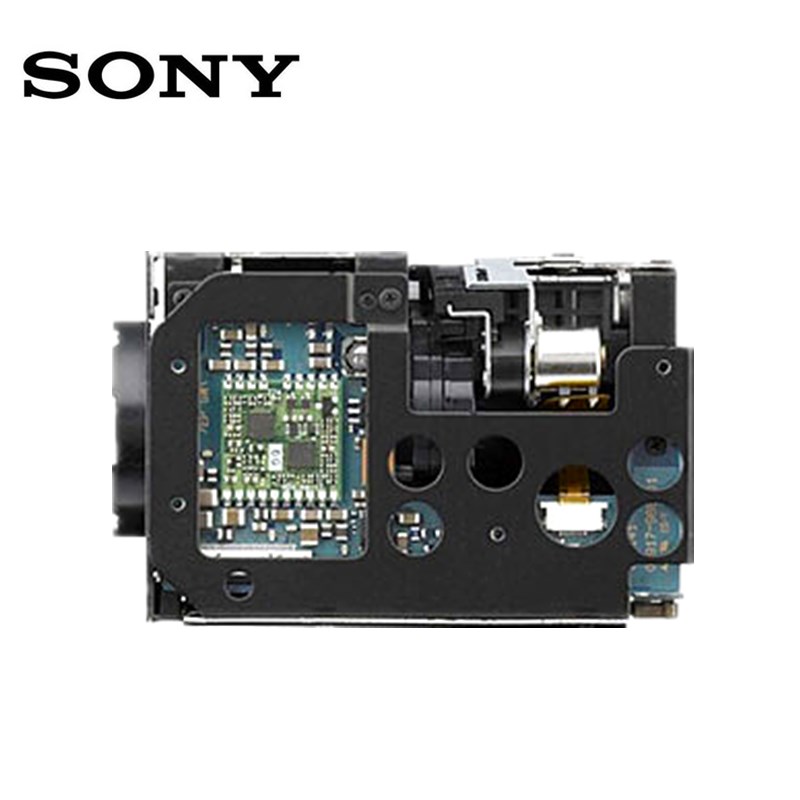

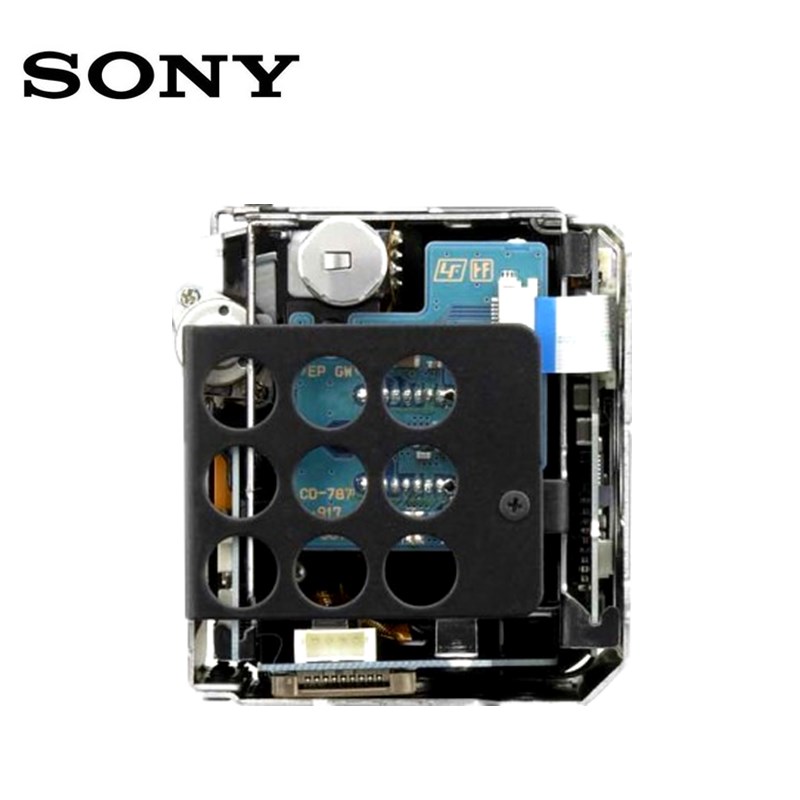

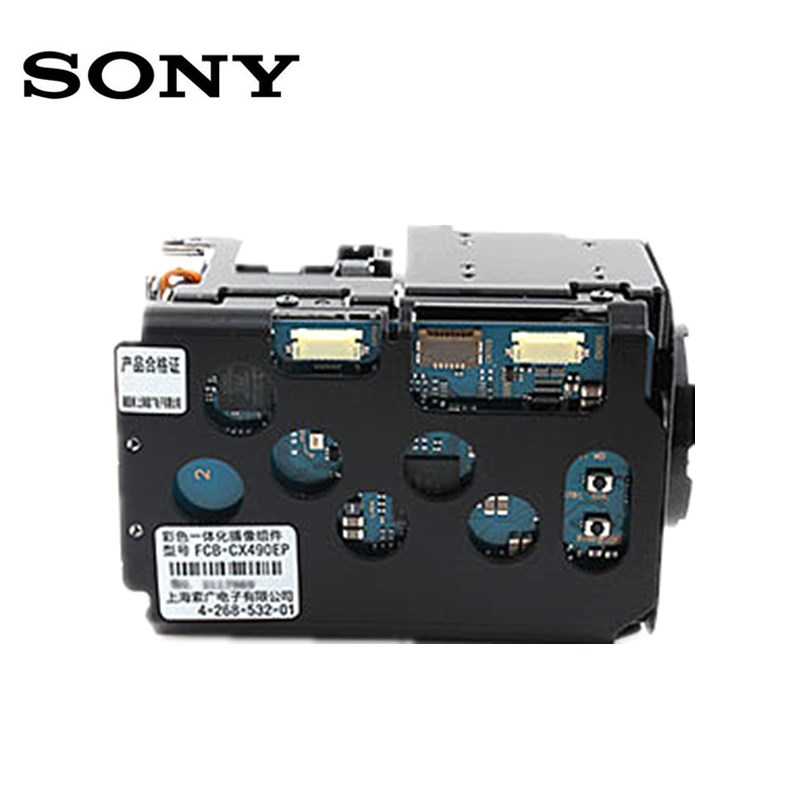

FCB-EX/CX Series

FCB-EX490E & FCB-EX490EP

18x Block Zoom Camera

> Image sensor: 1/4-type EXview HAD CCD™ (Progressive Scan)

> Resolution: 550TVL

> Lens: f=4.1 mm (wide) to 73.8 mm (tele)

> Optical Zoom 18x, Digital Zoom 12x

> MOD: 10 mm (wide) to 800 mm (tele)

> Auto ICR for Day & Night

> WDR, BLC, Zone Masking, Motion Detection

> Slow AE, Advanced WB, Color Enhancement

> Picture Freeze, Automatic Lens Reset

> Enhanced Noise Reduction, High-sensitivity

> Temperature Readout

> VISCA Protocol

> Video Output: Analog (CVBS) and Digital (Y/Cb/Cr)

SPECIFICATION:

Model

FCB-EX490E / FCB-CX490E

FCB-EX490EP / FCB-CX490EP

Camera

Image sensor

1/4-type EXview HAD CCD™ (Progressive Scan)

Signal systems

NTSC

PAL

Effective picture elements

380,000 pixels

440,000 pixels

Lens

18x optical zoom lens

f=4.1 mm (wide) to 73.8 mm (tele), F1.4 to F3.0

Digital zoom

12 x (216x with optical zoom)

Minimum object distance

10 mm (wide) to 800 mm (tele),

*Default: 290 mm

Sync systems

Internal/External (V-lock)

Horizontal viewing angle

48.0° (wide) to 2.8° (tele)

Horizontal resolution

550 TV lines

Focus systems

Auto (Sensitivity: normal, low), One-push AF, Manual, Infinity, Interval AF, Zoom Trigger AF, Focus Compensation in ICR On Mode

Minimum illumination

0.7 lx (F1.4, 50IRE)

Recommended illumination

100 lx to 100,000 lx

S/N ratio

More than 50 dB

Video output

ANALOG

VBS: 1.0 Vp-p (sync negative), Y/C

DIGITAL

Y/Cb/Cr 4:2:2 (comparable to ITU-R BT656)

Camera control

VISCA (CMOS 5 V level)

Baud rate: 9.6 kbps, 19.2 kbps, 38.4 kbps

Stop bit: 1 bit

Electronic shutter

1/1 sec to 1/10,000 sec, 22 steps

White balance

Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (fix/auto), One-push, Manual

Gain

Auto/Manual/Max. Gain Limit (-3 dB to +28 dB, 2 dB steps)

AE control

Auto, Manual, Priority mode (shutter priority & iris priority), Bright, EV compensation, Slow AE

EV compensation

Yes

Focusing system

Auto (Sensitivity: normal, low), One-push AF, Manual, Infinity, Interval AF, Zoom Trigger AF, Focus Compensation in ICR On Mode

Backlight compensation

Yes

Aperture control

16 steps

Preset

6 positions

Camera Features

Wide-D Auto mode

Yes

Wide-D IS/PS mode

Yes

Image Stabilisation

No

StableZoom

No

Digital output

Yes

Enhanced Noise Reduction

Yes

Auto ICR

Yes

Spherical Privacy Zone Masking

Yes

Motion Detection

Yes

Alarm

Yes

Slow AE response

Yes (Longer than 10 minutes)

Picture effects

E-Flip, Nega Art, Black & White, Mirror image, Colour Enhancement

Picture freeze

Yes

Slow shutter

Yes

Temperature readout

Yes

Title display

Yes (20 characters / line, max. 11 lines)

Camera mode display

Yes (English*/Chinese) *default

Key switch control

Yes

Multi-line OSD

Yes

Flicker Cancel

Yes (Auto)

General

Storage temperature

-20°C to +60°C

Storage humidity

20% to 95%

Operating temperature

-5°C to +60°C

Operating humidity

20% to 80%

Power requirements

DC 6.0 V to 12.0 V

Power consumption

2.4 W (motors active: 4.4 W)

Dimensions (W x H x D)

50.0 x 57.5 x 88.5 mm

(2 x 2 3/8 x 3 1/2 inches)

Weight

230 g (8.1 oz)






PIN ASSIGNMENT:






DIMENSION:
